Push-Rod Cameras

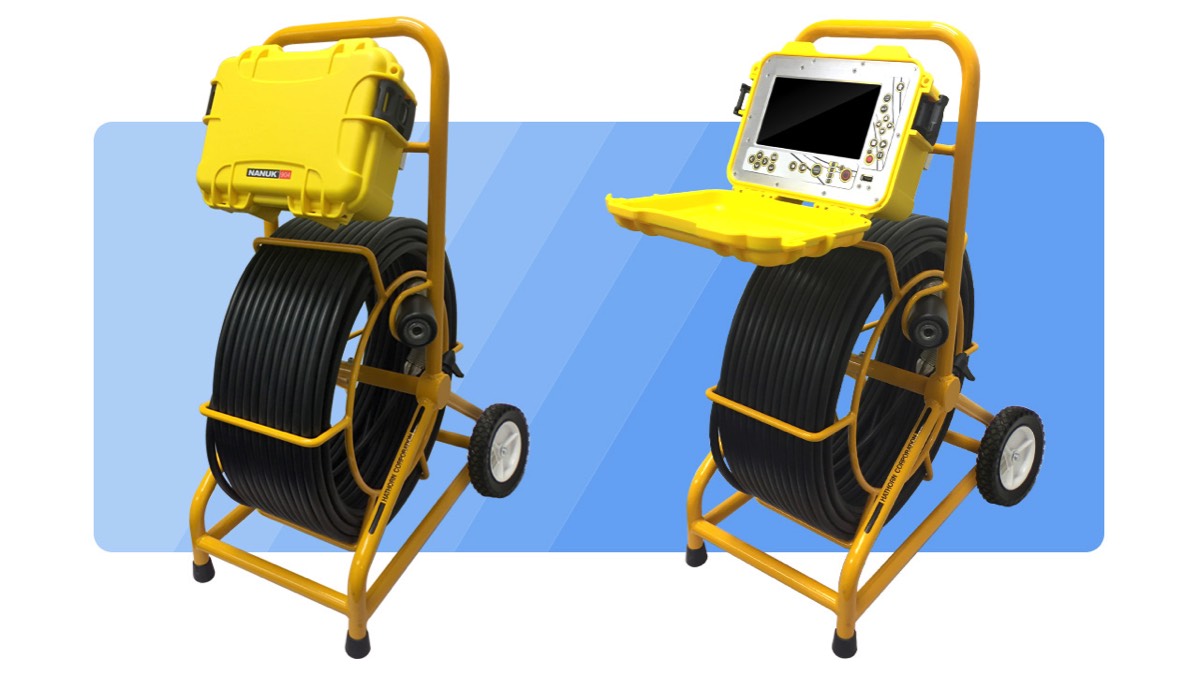

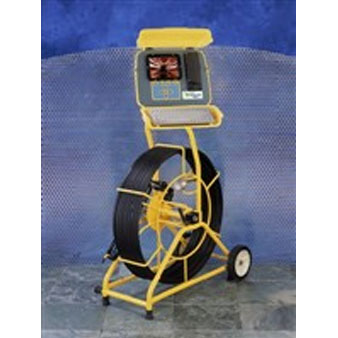

Magnum Controller and Reel Package A

Comes With a Magnum Controller and a Standard Reel:

Magnum DVR Controller-

  • 12.1” daylight readable monitor
  • On-screen footage counter
  • 512hz sonde
  • Record to USB
  • Audio/video out jacks
  • One touch recording and pause key
  • Click touch controls
  • Voice over recording
  • MPEG format
  • 16 pages of text writing and memory saves
  • Adjustable lighting
  • 2hr battery with built-in charger, or plug directly into power source

Standard Reel –

  • 200 FT reel
  • 1.4” DIA self-levelling camera head
  • ½” premium spiral wound push rod
  • 512hz transmitter coil (for easy locating)
  • Metal control box mounting bracket
  • 3” p-traps and up
  • P-trap skid
  • Slip brake handle
  • Also available in 300 FT and 400 FT
  • Reel stand with wheels for easy movability

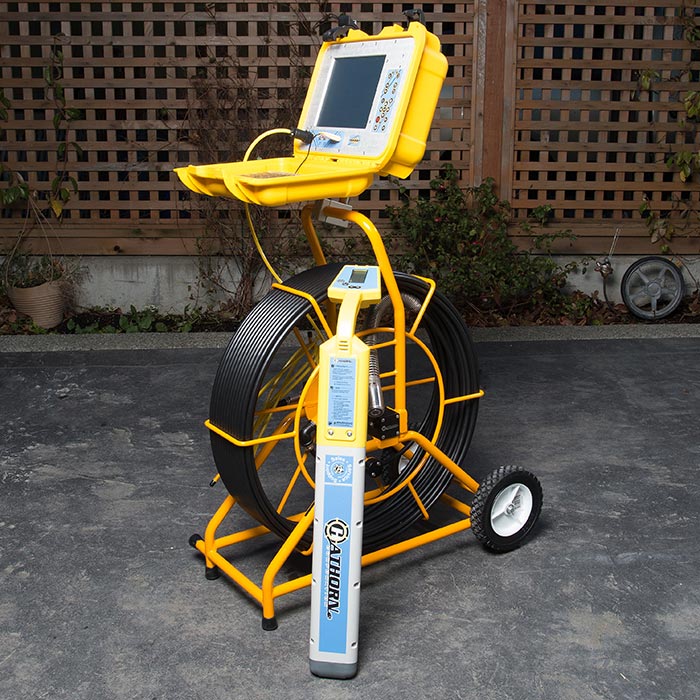

Magnum Controller and Reel Package B

Comes With a Magnum Controller, Standard Reel and Locator:

Magnum DVR Controller –

  • 12.1” daylight readable monitor
  • On-screen footage counter
  • 512hz sonde
  • Record to USB
  • Audio/video out jacks
  • One touch recording and pause key
  • Click touch controls
  • Voice over recording
  • MPEG format
  • 16 pages of text writing and memory saves
  • Adjustable lighting
  • 2hr battery with built-in charger, or plug directly into power source

Standard Reel –

  • 200 FT reel
  • 1.4” DIA self-levelling camera head
  • ½” premium spiral wound push rod
  • 512hz transmitter coil (for easy locating)
  • Metal control box mounting bracket
  • 3” p-traps and up
  • P-trap skid
  • Slip brake handle
  • Also available in 300 FT and 400 FT
  • Reel stand with wheels for easy movability

Locator –

  • 512hz sonde (for easy locating)
  • Backlight digital display
  • Storage case
Magnum M7

Comes On Its Own or With a Locator:

M7 –

  • 7” monitor
  • 200ft mini reel
  • .400” premium spiral wound push rod
  • Optional camera heads
  • USB recording
  • Footage counter
  • 512hz sonde (for easy locating)
  • Text writer

Locator –

  • 512hz sonde (for easy locating)
  • Backlight digital display
  • Storage case

Complete Systems

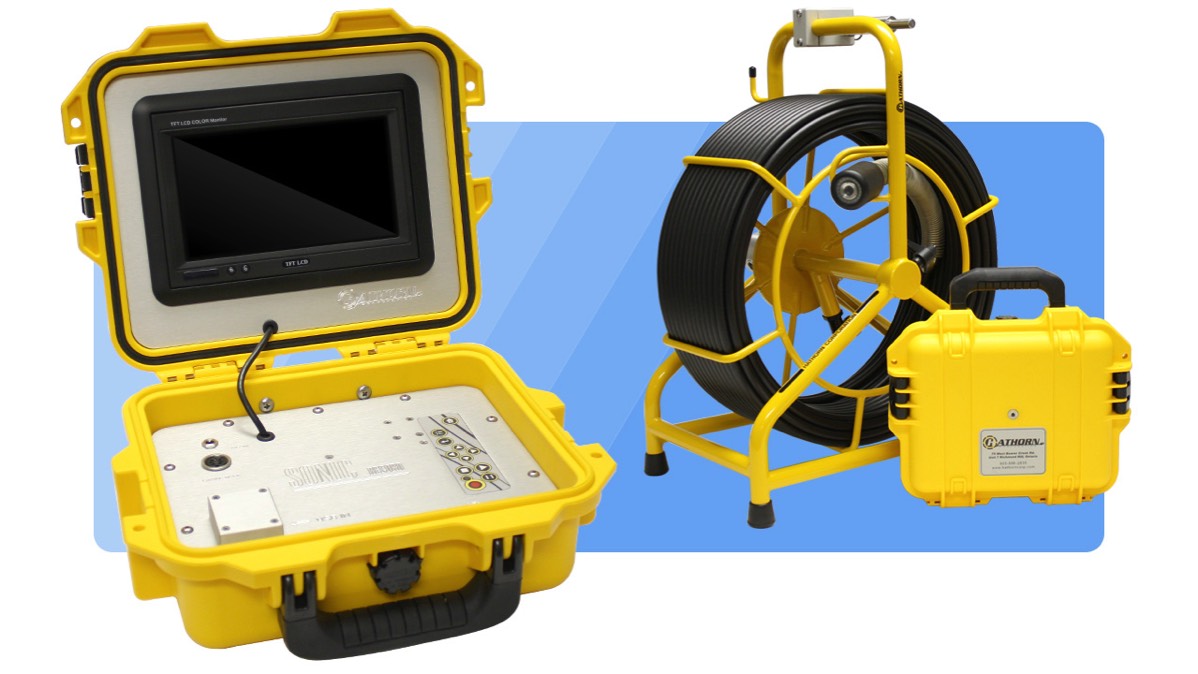

Sonic USB Record Camera System
Sonic Camera Systems are the economical choice for any plumber wanting a professional quick inspection tool. Built with all the same materials as our higher end units Sonic systems will deliver years of reliable performance at an affordable price.

Product Details:

  • 7.4″ LCD monitor
  • On screen footage counter
  • Rugged plastic control box
  • Machined aluminum panel
  • USB recording (Mpeg)
  • Control box mounts on reel
  • Adjustable drum brake
  • 512 HZ SONDE transmitter
  • Mid size cable reel
  • 200 feet of .400″ Premium push rod
  • 1.68″ stainless steel camera head
  • Camera skid

Optional Features:

  • 1.4″ Self leveling camera head
  • 1.23″ mini camera head
  • 1.23″ mini self leveling camera head
  • 8″ Wheel kit
Sonic Plus Camera System
Sonic Camera Systems are the economical choice for any plumber wanting a professional quick inspection tool. Built with all the same materials as our higher end units Sonic systems will deliver years of reliable performance at an affordable price.

Product Details:

  • 7.4″ LCD monitor
  • On screen footage counter
  • Rugged plastic control box
  • Machined aluminum panel
  • Built in Wi-Fi transmitter for recording on mobile devise.
  • Control box mounts on reel
  • Video out jack
  • Adjustable drum brake
  • 512 HZ SONDE transmitter
  • Mid size cable reel
  • 200 feet of .400″ Premium push rod
  • 1.23″ stainless steel camera head
  • Camera skid

Optional Features:

  • 1.4″ Self leveling camera head
  • 1.23″ mini self leveling camera head
  • 8″ Wheel kit
Portable System
The Portable camera system from Hathorn Corporation has everything you need in a small compact frame, is light weight and easy to use. Standard features include a 7.4″ daylight readable monitor, Wi-Fi video transfer to any mobile device, 125 feet of push rod, text writer and footage counter. 512Hz Sonde transmitter, rechargeable battery pack, adjustable lighting and more. Optional features include self levelling camera heads, USB recording and adjustable sun shield / monitor cover.

Product Details:

  • Compact and light weight (29lbs)
  • Vertical or Horizontal operation
  • Wi-Fi transmitter to record to mobile device
  • Adjustable drum brake
  • 125 feet Kevlar braided rigid push rod
  • Removable machined aluminum control center
  • Click touch buttons
  • 7.4″ day light readable monitor with acrylic cover
  • Integrated text writer with storable codes
  • Adjustable lighting
  • On screen footage counter
  • 512Hz Sonde transmitter
  • Navigates 2″ to 4″ pipe sizes
  • Lithium Ion battery pack
  • Battery level indicator
  • Low battery alarm

Optional Features:

  • USB recording device
  • Self leveling camera head
  • Sun shield monitor guard
Key Hole Gas Camera System
The Key Hole Gas Camera System was designed along with The Gas Technology Institute in Chicago for unique keyhole applications, and has been widely used in the gas utility sector for many years. The unique camera design and semi-flexible push rod allow for saddle joint entry of live gas mains at 90 degree angles.

Product Details:

  • Developed for the Natural Gas Utility Industry
  • Large standard push reel
  • 400′ flexible insertion rod
  • Fits seals of entry chamber (stuffing box)
  • Unique designed rugged color camera head
  • Navigates Keyhole saddle joints
  • Adjustable drum brake
  • Replaceable camera skid
  • Machined aluminum panels
  • 12.1″ HDMI Daylight readable monitor
  • Large battery pack
  • USB and Hard Drive Recording
  • Adjustable lighting
  • 512Hz Sonde transmitter
  • Full keyboard text writer
  • 2″ vertical to 2″ horizontal insertion
  • Works with Jameson keyhole insertion tools
  • Minimum drilling 1.5″diameter
  • 2″ to 4″ lines
  • 60 psi working pressures
  • Developed with South West Gas and Gas Technology Institute in 2010

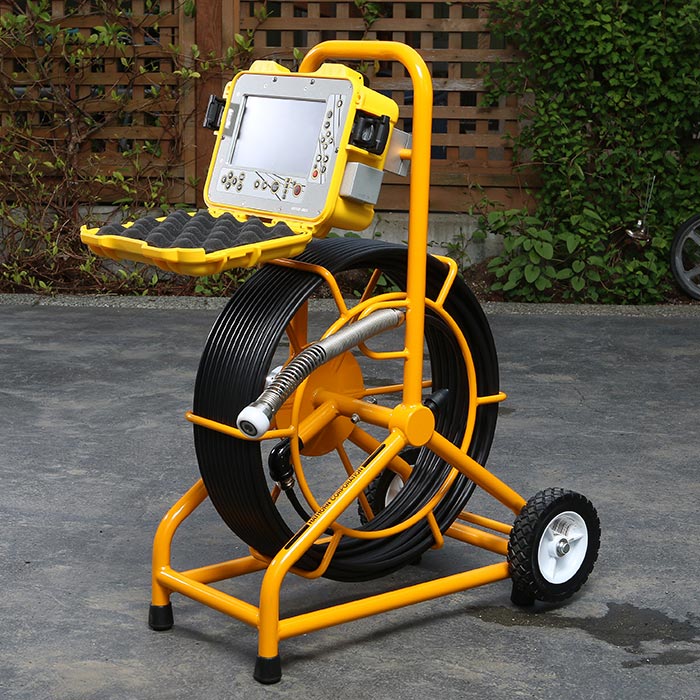

Magnum M7 System
Compact and light weight (only 29lbs) the M7 is packed with features and fits pipe sizes ranging from 1.5” to 6” depending on push rod and camera configuration.

Product Details:

  • 7.4″ Monitor with Acrylic Shield
  • USB Recording
  • 2 Hour Lithium Battery
  • On-Screen Footage Counter
  • 512Hz Sonde Transmitter
  • Adjustable Lighting
  • Text Writing
  • 100’ Push Rod with Straight View Camera

Optional Features:

  • 200’ of Push Rod
  • Self Levelling Camera Head
  • WiFi Transmitter

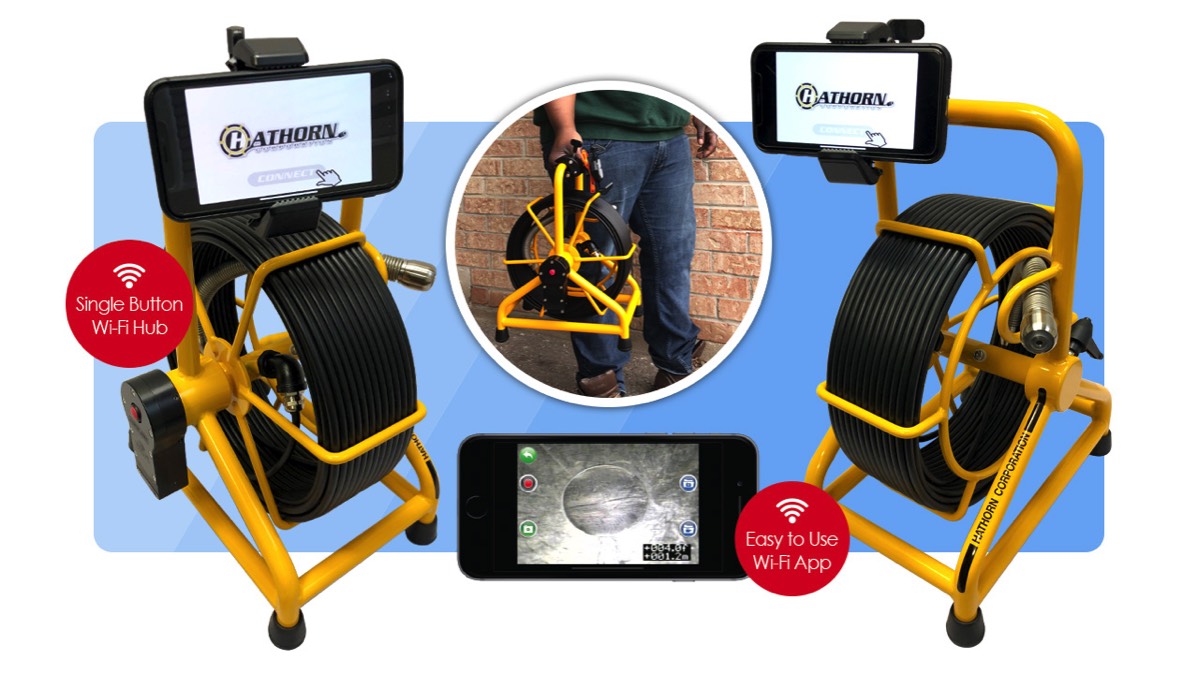

Wi-Fi Reels - Go Wireless!
Now with Wi-Fi reels you can complete inspections without the use of a traditional monitor. The Wi-Fi reels send a wireless WIFI signal directly to your mobile device in high definition video that can then be recorded and saved in your photo folder. Once the video is selected it can then be sent via text, email, airdrop, Facebook, Cloud, etc. The possibilities are endless. Multiple reel sizes, pushrod diameters and camera heads are available.

Product Details:

  • Monitor free reels, NO cords, NO heavy monitor cases, NO screens to damage.
  • Easy wireless video transfer from reel to mobile device.
  • On screen resettable footage counter.
  • 512Hz powerful SONDE transmitter.
  • Auto iris camera element automatically adjusts picture lighting.
  • Connect multiple devices at once.
  • Record in high compressed video, easily manage video files and snapshot pictures, files can be air-dropped, texted, emailed, etc.
  • Videos and pictures are saved right in your picture app.
  • Downloadable Wi-Fi App.
M5W Micro Reel System
This small compact Micro reel delivers everything you need to perform quick inspections in pipes ranging from 1 1/2″ to 3″diameter and up to one hundred feet in length. Weighing in at only 15 pounds makes this camera perfect for easy portability. The system comes equipped with a 512Hz transmitter and a resettable on-screen footage counter. The video is streamed directly to any mobile device which can be used as your monitor. Audio and video can be recorded to your mobile device as well. The files are saved on your device and can then be transferred via Email, Text, or to the Cloud. Its small size and portability make this camera a must for every plumber.

Product Details:

  • Monitor- Users mobile device
  • Push rod size .271″ diameter
  • Push rod length 100 feet
  • Footage counter displays feet and meters (resettable)
  • Sonde transmitter 512Hz
  • Camera head size – 1 inch diameter
  • Weight 15 pounds
  • Dimensions – 10″W x 12″L x 16″H

Command Modules

Magnum M12 Controller

The Magnum M12 Controller has the largest and brightest monitor in the industry. Its stunning picture quality and high contrast reveal images like no other. See what you have been missing!

Product Details:

  • Audio and Video Out Jacks
  • 12″ Daylight Readable Monitor
  • Click Touch Controls
  • Record to USB Drive
  • One Touch Recording with Pause Key
  • Mpeg Format
  • 16 Pages of Text Writing with Memory Saves
  • On Screen Footage Counter
  • Adjustable Lighting Controls
  • Voice Over Recording (Built In)
  • Rename Files on Stick After Recorded
  • 512Hz Sonde
  • Lithium Ion battery
  • Low battery alarm
  • Battery level indicator
  • Works with Most Hathorn Reels

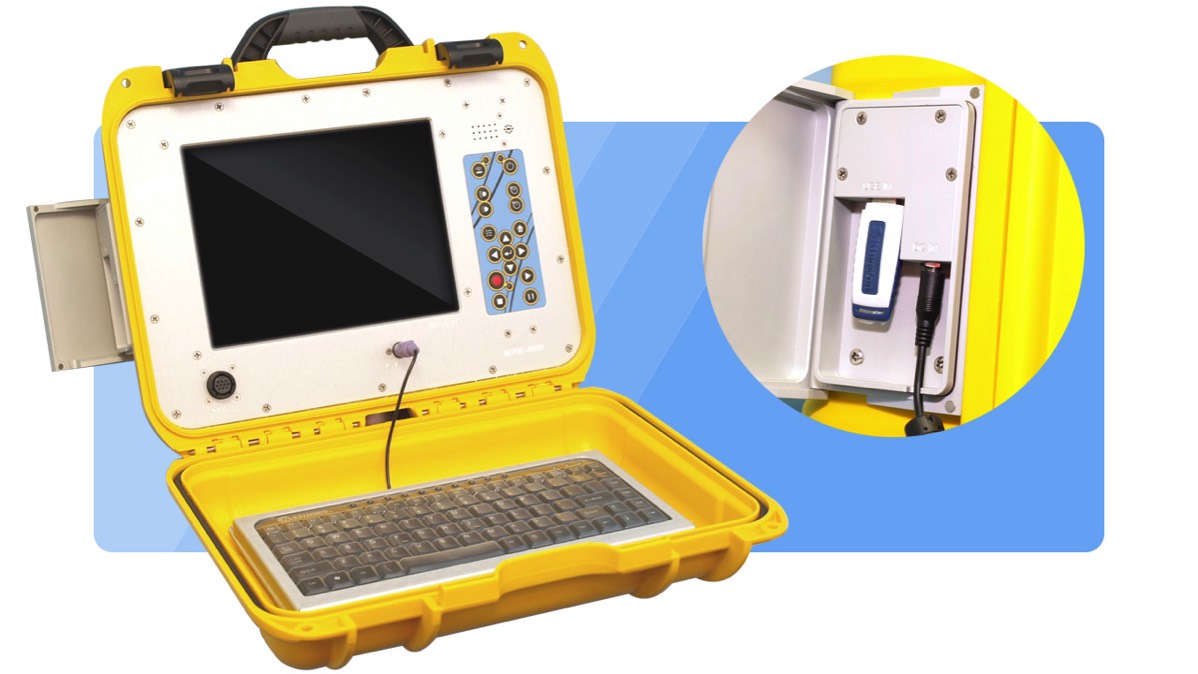

Optimum 12.1 HDD Controller

Record directly to the hard drive or a USB stick. Transfer media between drives or to a computer.

Product Details:

  • 500GB Hard Drive
  • 12.1” HDMI Sunlight Readable Monitor
  • Record To USB Stick or Hard Drive
  • Transfer Data Via USB Cable To Computer
  • Easy Menu To Navigate
  • Built In Microphone and Speaker
  • Play, Pause, and 8x Zoom Record Functions
  • Mpeg Recording Files
  • 16 Pages of Text Writing with Memory Saves
  • On Screen Footage Counter
  • Adjustable Lighting Controls
  • Silicone Covered Key Board (Full Size)
  • 512hz Sonde
  • 4 Hour Battery with Built In Charger
  • Works with Most Hathorn Reels
  • Works with Speciality Reels (Optional Adaptor)

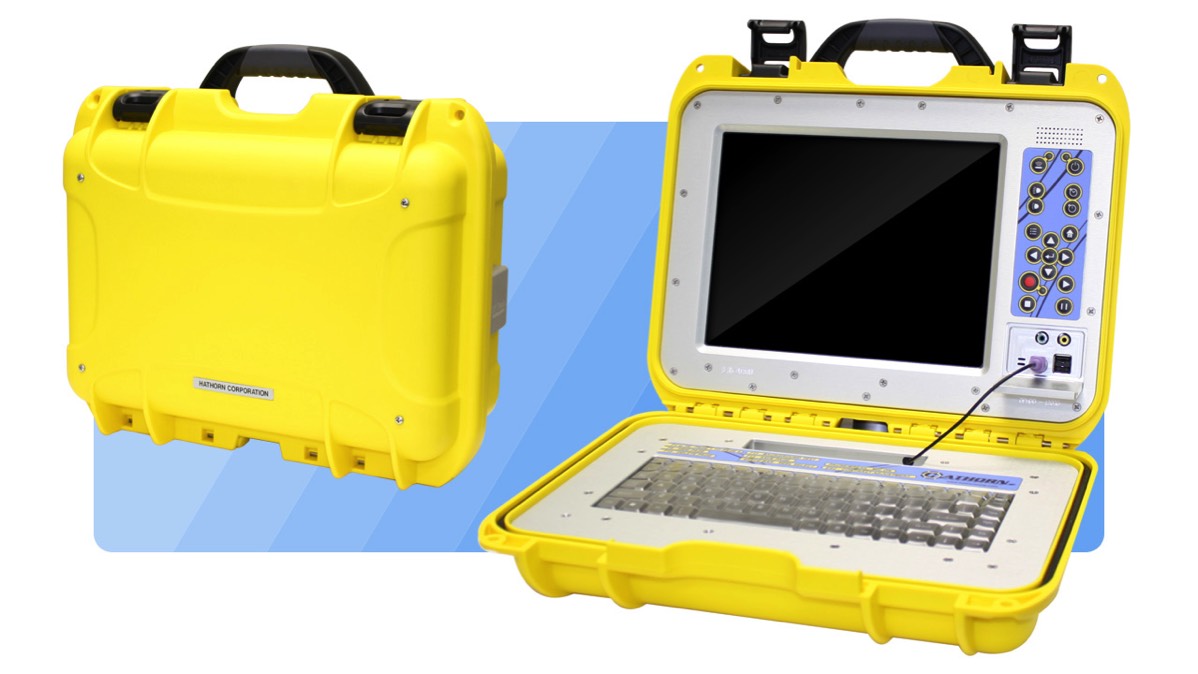

Magnum Weatherproof Controller

Working in the rain or snow is no problem when you are using the Magnum Weather Proof. Every opening has been sealed to keep out moisture and allow users to keep working even in harsh conditions.

Product Details:

  • Weather sealed 10.4″ Daylight Readable Monitor
  • Click Touch Controls
  • Record to USB Drive
  • One Touch Recording with Pause Key
  • Mpeg Format
  • 16 Pages of Text Writing with Memory Saves
  • On Screen Footage Counter
  • Adjustable Lighting Controls
  • Voice Over Recording (Built In)
  • Rename Files on Stick After Recorded
  • 512Hz Sonde
  • Lithium Ion Battery with Built In Charger
  • Low battery alarm
  • Battery level indicator
  • Works with Most Hathorn Reels

Systems are available on a lease-to-own basis for $100/month
